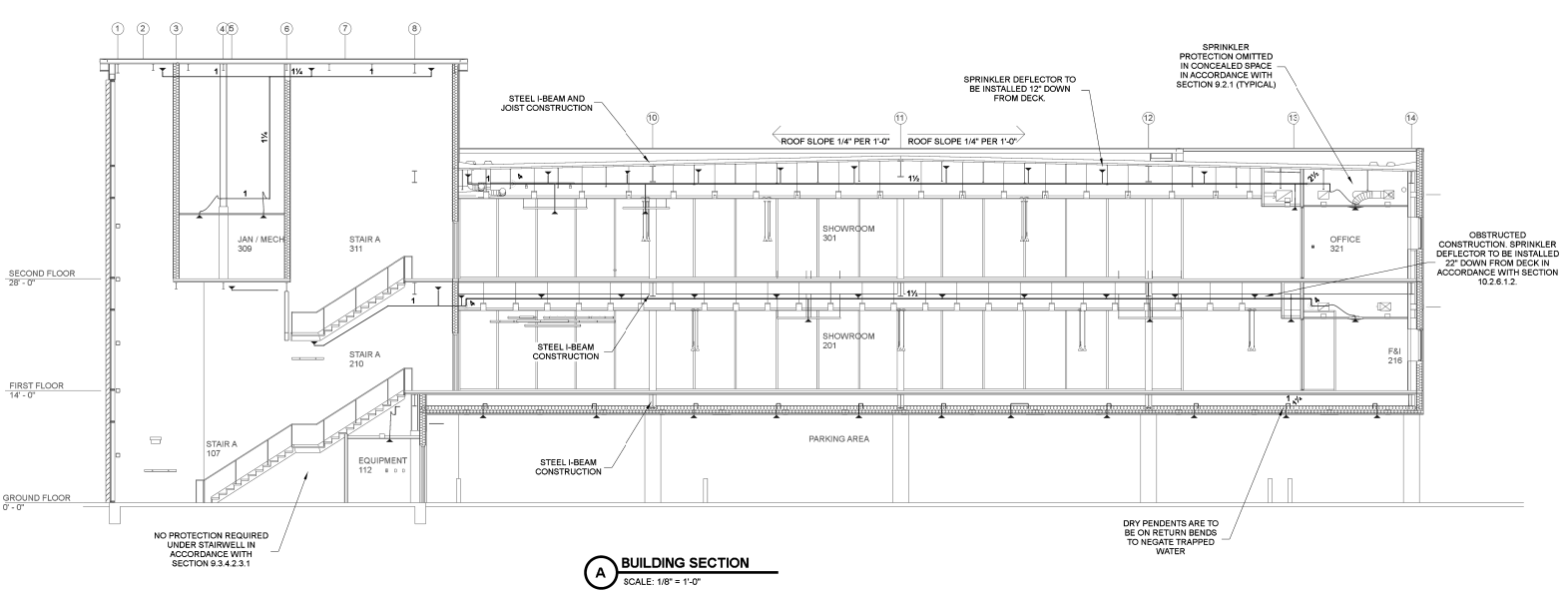

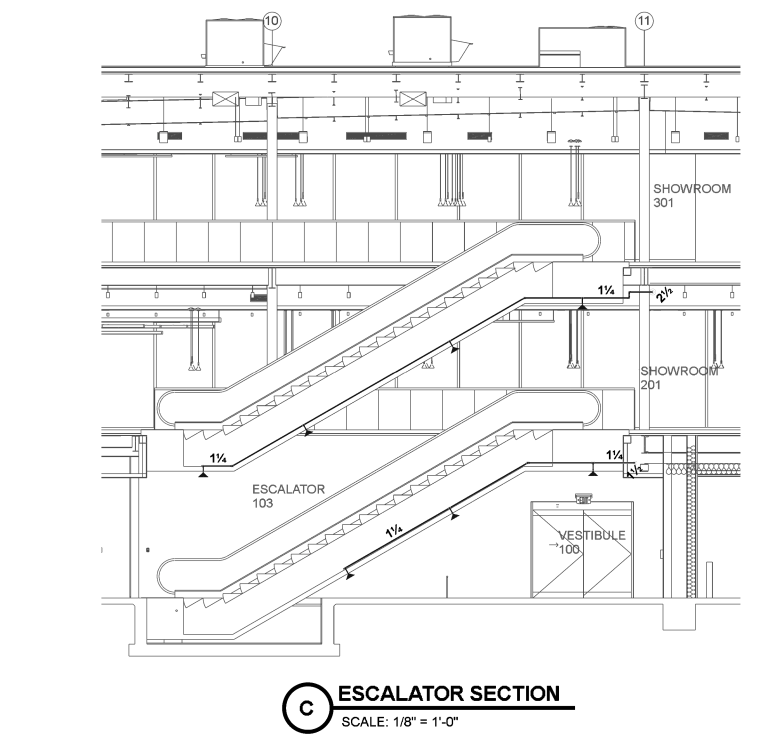

This drawing was unique because we had to install a dry zone above a dropped ceiling with pendents on return bends. This project also consisted of a threaded grid system which is not common. We utilized all Victaulic sprinkler heads, as well as their dry and control valves. There were also escalators on this project that required protection below it.
Description
This drawing was unique because we had to install a dry zone above a dropped ceiling with pendents on return bends. This project also consisted of a threaded grid system which is not common. We utilized all Victaulic sprinkler heads, as well as their dry and control valves. There were also escalators on this project that required protection below it.
New Construction
25,000 to 50,000
3
250 to 500
2
NFPA 13 and 20

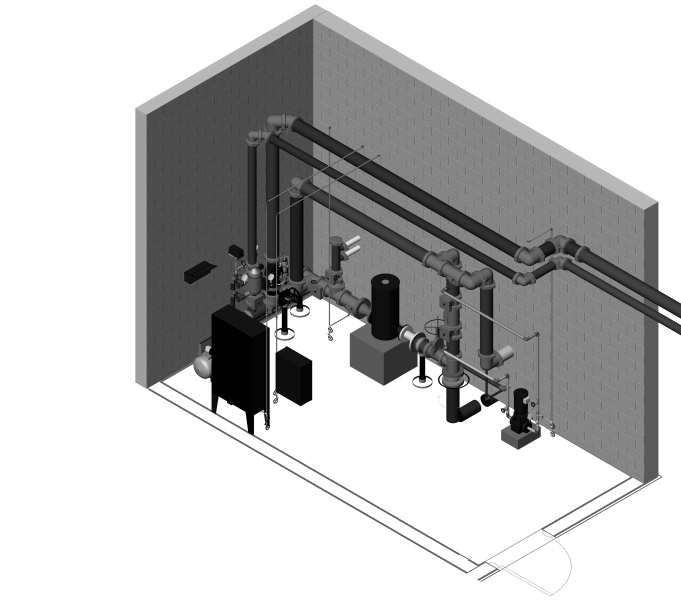

Dry, Fire Pump, Wet
Light, Ordinary
Municipal +Fire Pump
